Swapping a factory radio sounds simple until the dash comes apart. Frames, harnesses and climate controls change from one vehicle to the next, and a head unit that is almost right is still wrong.
AINAVIGO builds its Android touchscreen radios around that problem. Each model is cut for a specific vehicle and year range, so the real skill in buying one is matching it to your exact dash, not comparing spec sheets.
This guide walks through the decisions in the order they matter: fit, climate controls, sound system, screen size, hardware, installation and where to buy. It works from the brand’s listing details and spec sheets, not from a test bench of my own, so anything that comes from the brand is labeled that way.
Who AINAVIGO Is and What It Sells
AINAVIGO’s range centers on large-screen car radios. Its Amazon store sorts products into three sections: radio upgrades, vehicle cameras and rear-seat headrest monitors, sometimes called car TVs.
Pickup owners and commuters are both catered for. Toyota’s Corolla, Camry, RAV4 and Tacoma, the Honda Accord, the Dodge Ram and the Jeep Wrangler JK all have a listing of their own.
The brand’s own summary points to three areas: big-screen car radios, entertainment for rear passengers and monitoring systems for vehicles. That lines up with the product range, although a self-description is marketing and proves nothing alone.
On the business side, the seller profile on the Amazon store registers the company as BIG RUI GLOBAL LIMITED, based around Kowloon Bay in Hong Kong. Product pages list China as where the goods originate. No founder story or detailed company history appears in the material available, so the backstory is left out rather than guessed at.
In practice you are choosing on the hardware, the fit and the protection that comes with the Amazon listing. The sections below take those one at a time.
Match Your Exact Vehicle and Year
Every AINAVIGO radio ships with a dash frame and harness cut for particular models. Pick the listing that names your vehicle and year range, and treat “close enough” as a miss.
| Your vehicle | AINAVIGO listing |
| Dodge Ram 1500/2500/3500, 2013 to 2018 | 10.2-inch radio, in two versions (see the next section) |
| Dodge Ram, 2009 to 2012 | 10.2-inch radio, manual AC |

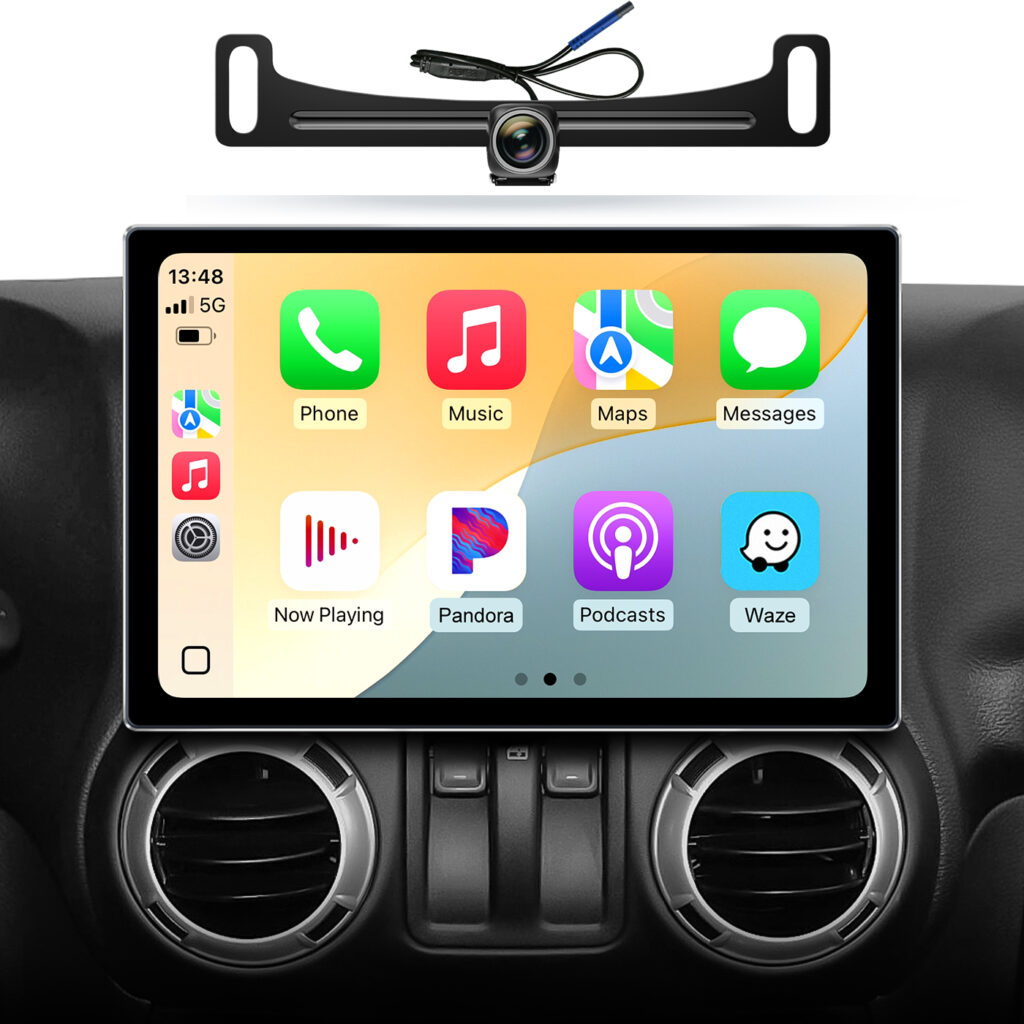

| Jeep Wrangler JK, 2007 to 2018, and related Jeep, Chrysler and Dodge models | 10.2-inch radio |
| Honda Accord, 2008 to 2012 | 10.2-inch radio |
| Toyota Corolla, 2008 to 2012 (non-JBL) | 9-inch radio with 64GB of storage |
| Toyota Camry, 2006 to 2011 (non-JBL) | 9-inch radio |
| Toyota RAV4, 2013 to 2018 | 10.2-inch or 11.5-inch radio |
The Jeep listing has the widest fit list in the range. Beyond the Wrangler JK, it names the Compass, Patriot, Grand Cherokee, Liberty and Commander. The fit list also reaches Chrysler and Dodge vehicles, among them Rams from 2009 to 2012.
Some listings encourage you to send the seller a picture of your center console ahead of purchase. It is free, and it can head off a return.
Manual or Automatic Climate Control

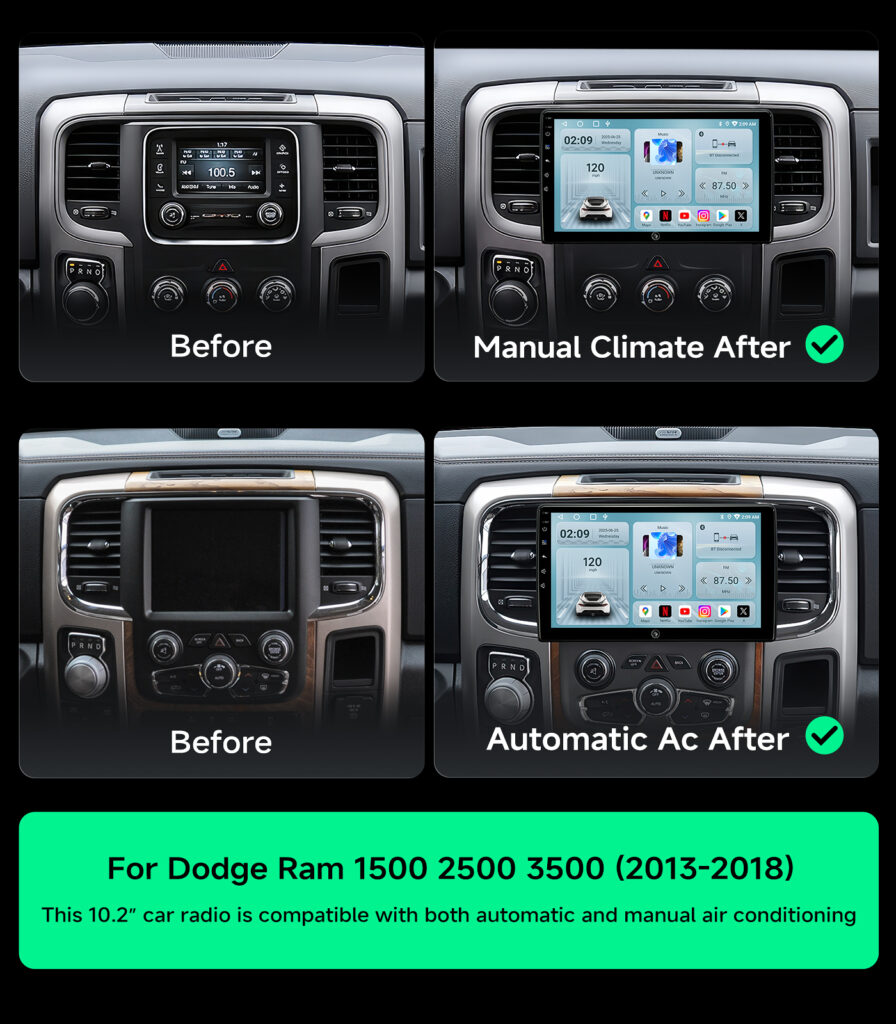

This check matters most for Ram owners. For the 2013 to 2018 Ram, AINAVIGO offers a pair of listings that share one screen size. What separates them is the air conditioning.
- Manual AC only: this is the more recent listing, and it also reaches 2019 to 2023 Ram 1500 Classic trucks. A matching manual climate panel is supplied for the new bezel.
- Manual and automatic AC: the older listing. It leaves out Ram vans.
Manual climate control usually means plain knobs for temperature and fan speed. Automatic control usually adds an Auto button and a set temperature on the display. When in doubt, hold your dash up against the photos on each listing.
Each listing’s model name also flags its fit limits, so read it before ordering.
Sound System and Screen Size
Check for a premium audio system
Three listings (Corolla, Camry and the older RAV4) only suit vehicles without the JBL sound package. If your factory system says JBL, the standard harness will not work as supplied.
Pick a screen you will like
AINAVIGO sells 9-inch, 10.2-inch and 11.5-inch screens, depending on the vehicle. The listing photos show how each size sits in the dash, so look at them for your vehicle before choosing.
Weigh memory and storage
Most models pair 2GB of memory with 32GB of storage, enough for CarPlay, Android Auto and maps. The Corolla model doubles the storage to 64GB while keeping the memory.
For running Android apps directly on the unit, the 11.5-inch RAV4 and Accord listings go further, with 4GB of RAM and 64GB of storage. The older Tacoma listing is on Android 12.
What the Specs Mean
The processor and memory
In effect, each radio is a tablet running Android, packaged to sit in a dash opening. The Ram model runs Android 13 on a four-core processor.
RAM is the working memory that lets apps stay open side by side. Two gigabytes is enough for CarPlay or a single navigation app. Stacking several demanding apps, split-screen mode included, is where that figure becomes a constraint.
Storage
Listings show storage as ROM. It is the space for offline maps, Play Store apps and any music you keep on the radio itself. Drivers who run CarPlay or Android Auto leave most of that work to the phone, which makes the storage figure a small factor.
The screen
The Ram unit pairs a 10.2-inch IPS panel with a 1280×720 resolution. The brand quotes a 178-degree viewing angle, the figure to check if a passenger will view the screen from the side.
The brand also lists a fully laminated display, meaning the glass is bonded straight to the panel, along with 92% transparency, an anti-glare finish and an 8ms touch response. A few Honda and RAV4 listings name QLED rather than IPS, at the same resolution.
Phone link, Wi-Fi, Bluetooth and GPS
- GPS: built in, with North America maps preloaded. Offline maps can be downloaded, and live traffic needs a connection.
- Bluetooth 5.0: covers hands-free calls, audio streaming and contact sync.
- Wi-Fi on two bands (2.4GHz and 5GHz): connects the radio to your phone’s hotspot so it can fetch apps and updates.
- CarPlay and Android Auto: supported wired and wireless on every model. The brand’s images say your phone connects by itself within ten seconds of start-up, and a USB cable gives a wired option.
Camera, CANbus and sound
AHD stands for Analog High Definition, a format meant to improve picture quality over ordinary camera cabling without a digital setup. The Ram’s camera is listed at 1920×1080 with a 170-degree lens, and a few car listings rate their cameras IP69 for water resistance.
The CAN bus is the network a vehicle uses to pass data between its modules. AINAVIGO packs a decoder for that network, and the decoder is what lets the radio register reverse gear and steering wheel button presses.
A built-in DSP and equalizer cover sound tuning, and an RCA cable is supplied. No amplifier rating is published, so the built-in output power is unknown.
Which specs matter? Boiled down, four specs decide most purchases: fit for your vehicle, the right climate-control type, a screen you like and working CarPlay or Android Auto. RAM and storage become deciding factors only if you plan to treat the radio as a tablet.
AINAVIGO Against a Name Brand
The alternative to a vehicle-specific radio is a name-brand receiver, and Pioneer makes a useful comparison. The two approaches differ: AINAVIGO builds one radio per vehicle, with the frame, harness, decoder and camera in a single box.
Pioneer’s receivers are universal, made to standard DIN sizes rather than for one dash. Getting one into a given vehicle usually means a dash kit and a wiring interface from a third-party maker.
One route for Rams built from 2013 to 2018 with the 8.4-inch factory display is an iDatalink dash kit (the KIT-RAM1) plus a separately sold Maestro RR module. That pairing is meant to keep the steering wheel controls, the factory amplifier and the backup camera.
| Feature | AINAVIGO Ram radio | Pioneer DMH-W2770NEX |
| Screen | 10.2-inch IPS, 1280×720 | 6.8-inch WVGA |
| Phone connection | Wired and wireless | Wired and wireless |
| Software | Android 13, with Play Store access | Pioneer’s own software |
| Rear camera | Bundled | Camera input only; the camera is a separate purchase |
| Install parts | Frame and harness bundled | Dash kit and interface bought separately |
| Audio | Built-in DSP and EQ; amplifier rating not listed | 4 x 14 watts RMS, graphic EQ with 13 bands |
| Warranty | One year from the manufacturer | One year, limited, through authorized dealers only |
On paper AINAVIGO wins on screen size and on what comes in the box. Pioneer wins on published audio numbers, a long-established name with authorized dealers and installers, and a known warranty path. The 9-inch DMH-WT7600NEX is the bigger Pioneer choice, with an HD Radio tuner, an HDMI input and Alexa support.
AINAVIGO suits drivers who want a big screen from a budget-tier brand, are happy to do their own install and own a vehicle that lines up with a listing. A name brand suits anyone who prefers a professional installation, wants to keep the 8.4-inch factory screen’s features or prefers to buy through authorized dealers.
Install, Setup and Care
Before you start
- Disconnect the battery, as with any radio swap.
- Look over the harness connectors before you plug anything in.
- Watch the brand’s how-to videos first. They walk through the box contents, CarPlay and Android Auto setup, Wi-Fi and Bluetooth pairing, and camera troubleshooting.
During the install
Pass the cables through the frame before it goes into the dash, since doing it afterward would mean unplugging the connections.
The camera cable is the longest run, because it travels from the dash to the rear of the vehicle.
Test power, CarPlay, the camera, the steering wheel buttons and sound before you close the dash. Any problem is simpler to sort out while the trim is still off.
Checks after installing
- The screen switches fully off with the ignition.
- Wireless CarPlay or Android Auto connects, or a USB cable gives you the wired option, which works on every model.
- The steering wheel buttons respond and the camera comes on in reverse.
- The brand’s Ram listing also carries a “Backup Camera Fault Diagnosis” video, worth watching if the camera shows nothing.
Everyday care
A soft, dry microfiber cloth is the right tool for the screen, and harsh chemical cleaners should stay off the glass. Dust the camera lens now and then. Avoid filling the 32GB of storage with apps and maps, since a nearly full unit can run slower.
If something does not work as listed, contact the seller through Amazon while you are still inside the return window.
Buying, Returns and Warranty
AINAVIGO’s products sit under its store page inside Amazon. The Ram radio is sold by the AINAVIGO Store and ships from Amazon’s own warehouses, so Amazon handles delivery and any return. To see the full range, browse AINAVIGO’s storefront on Amazon, which opens Amazon in a new tab.
Before you order, confirm you are on the real listing:
- The brand line under the title should read “Visit the AINAVIGO Store.”
- The buy box should name the AINAVIGO Store as the seller and show Amazon on the “Ships from” line.
- The seller profile should show BIG RUI GLOBAL LIMITED.
- A warranty line should be present. The Ram radio shows one year from the manufacturer.
Other brands list Android screens for the same vehicles, sometimes with similar photos and spec lists. A look-alike is not automatically fake, but it comes from a different seller, so its support and warranty will differ.
AINAVIGO leaves returns to Amazon. Its seller profile points buyers to Amazon’s refund policy, and the listing for the Ram radio gives buyers 30 days to choose a refund or a replacement. A return starts from your Amazon orders, with the original box and every included part going back together. If the problem was fit, asking for a refund and re-checking the listing beats requesting another identical radio.
| Product | Listed warranty |
| Ram radio (10.2-inch) | One year, from the manufacturer |
| 4-channel DVR camera monitor | Replacement if quality problems appear within 6 months, free repairs up to 1 year, emails answered within 12 hours |
| Android headrest monitor (2GB RAM, 32GB storage) | 12 months from the manufacturer |
Terms are not spelled out much beyond that, so keep your Amazon order page as proof of purchase, and include the order number and date when you contact the seller.
Questions Before You Buy
Does AINAVIGO design its own radios?
The material available does not confirm that. The seller profile names BIG RUI GLOBAL LIMITED, and the product pages list China as where the goods originate.
Will the radios work with wireless CarPlay and Android Auto?
The listings cover both wired and wireless connections. The brand’s images say the phone connects within ten seconds of start-up, and a USB cable gives you a wired alternative.
What ships with the Ram radio?
The head unit and frame come with a harness, a CANbus decoder, a camera, a GPS antenna, a microphone, an RCA lead, two USB leads, a manual and a trim tool. The manual-AC version also supplies a climate panel.
Will my steering wheel controls keep working?
The listings say they are compatible with factory steering wheel controls, and the CANbus decoder in the box is what lets the radio read those button presses.
Does navigation work without internet?
Yes. Preloaded North America maps are included, and offline map downloads are supported. Live traffic needs a network, such as your phone’s hotspot.
Can I install apps such as YouTube?
It runs Android, so apps can be installed once the radio is online through the Play Store. Watch video only while parked.
Is a backup camera included?
Yes. It is a 1080P AHD camera on a license plate bracket, and the screen switches to it in reverse.
Choosing Your Radio
Start with your vehicle and year, then the climate type, then the sound system. Screen size and RAM come last, because fit decides everything else.
- Ram with manual AC: the 10.2-inch manual-AC radio.
- Ram with automatic AC: the manual-and-automatic version.
- Widest fit list: the Jeep radio.
- Most headroom: the 11.5-inch RAV4 or Accord models.
For a closer look at the Ram model, read our full verdict on the AINAVIGO Dodge Ram radio.
Once you know your match, browse AINAVIGO’s storefront on Amazon to compare listings, check that the seller is the AINAVIGO Store, and test everything early.
